Racing Shocks Australia is the Australian importer & factory trained service dealer for Motion Control Suspension. MCS is a boutique manufacturer of vehicle damper systems.

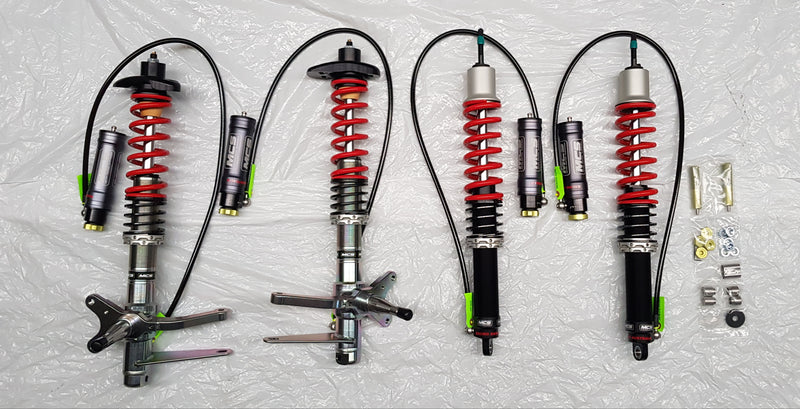

The early air-cooled Porsche 911 systems is the signature damper system from Motion Control Suspension.

These 911 struts/shocks systems are used regularly in Australia on Street/track day cars, Targa Rally vehicles & Internationally in Safari style rallies as popularized by Lehman Keen in the Keen Project You Tube videos. Multiple Le Mans winning driver Tom Kristensen has MCS dampers fitted to his Porsche 911 that was built to commemorate his very first win.

Motion Control Suspension has worked with the application regularly over the course of our 28 years and counting, and know what it takes to make these cars handle well. Whether you are restoring your Air-Cooled Porsche, have a resto-mod build in the works, or if you race your car, with our help we have a solution for you.

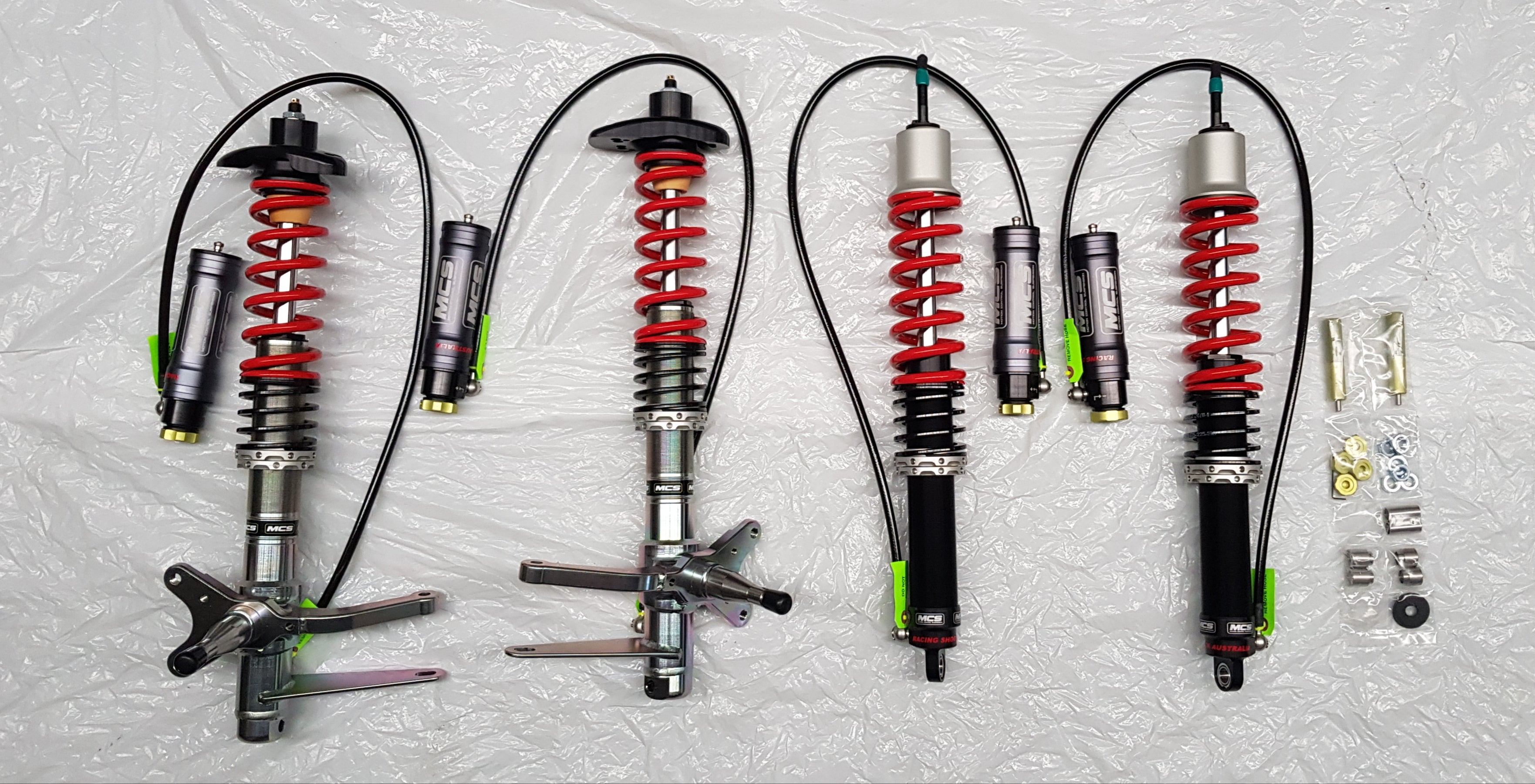

We offer our full range of damper systems for Air-Cooled Porsches and can convert your original spindles or build you new CNC cut spindles, something only MCS can offer. Our dampers have threaded bodies and can be used with or without coil springs and torsion bars. Damper lengths are carefully designed for your vehicle, with consideration of your wheel and tire configuration, ride height, and goals; this ensures you have appropriate bump and droop travel, and not only meet, but exceed your goals.

These systems are available for Porsche 911 G / Porsche 911 (classic), and Porsche 914 models, including but not limited to:

• 914 (1969–1976)
• O, A and B series (1964–1969)
• C and D series (1969–1971)
• E and F series (1971–1973)
• 911/911S (1974-77)
• 911 Carrera (1974-77/1984-89)
• 911 SC (1978-83)
• 912 E (1976)
• 911 Turbo 930 (1974-89)

Stock comes direct from the USA with a build/delivery time of 4 weeks for off the shelf production lengths & up to 8 weeks for custom/one off strut leg setups.

Motion Control Suspension features -

• Manufactured in the USA
• Non remote or remote canister system
• Gas pressurized 100 to 280psi (system/valving dependent)
• Maintenance free nitrogen gas chamber on non remote systems
• Gas pressure adjustable on remote canister systems to assist as a tuning tool

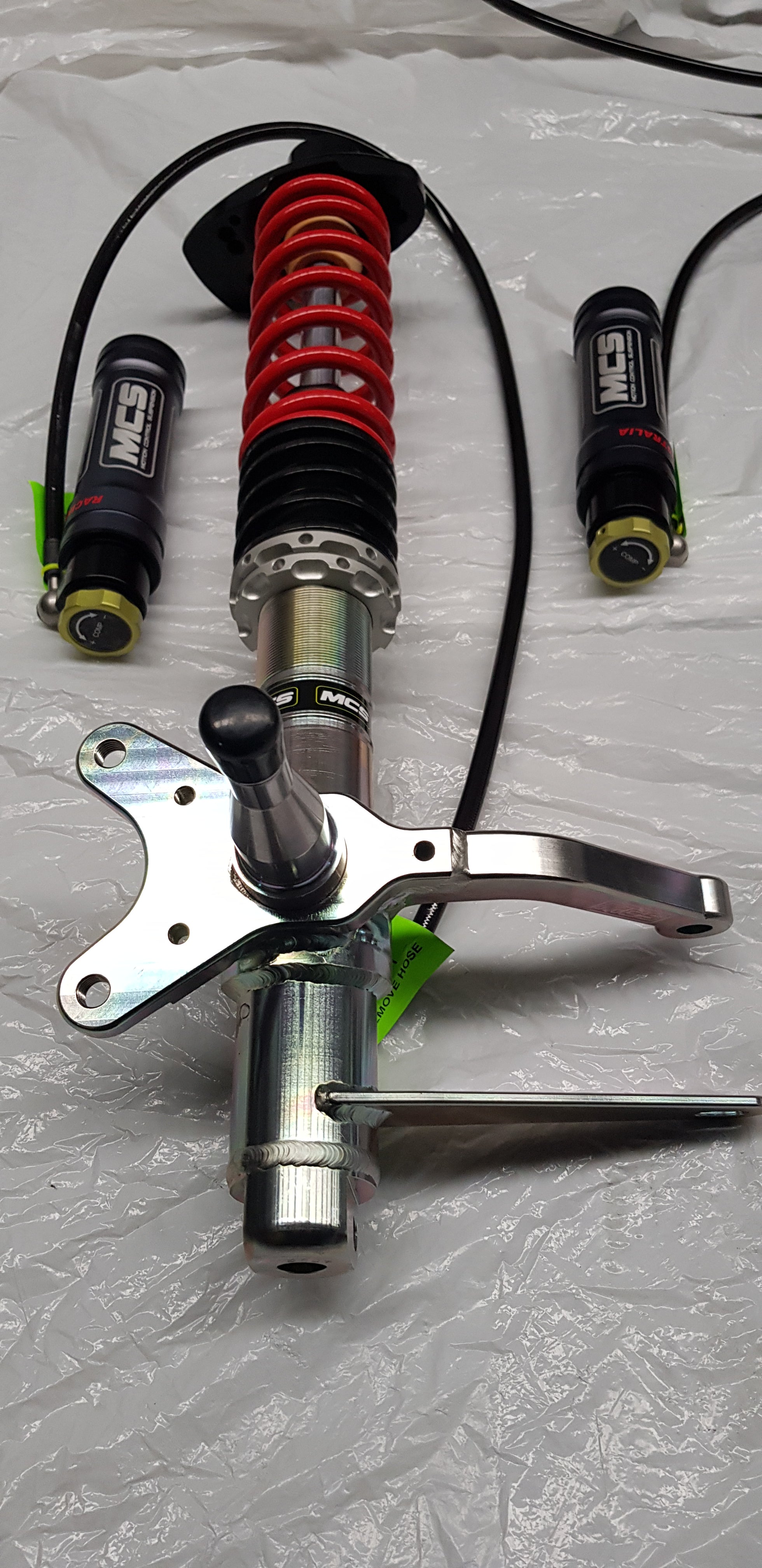

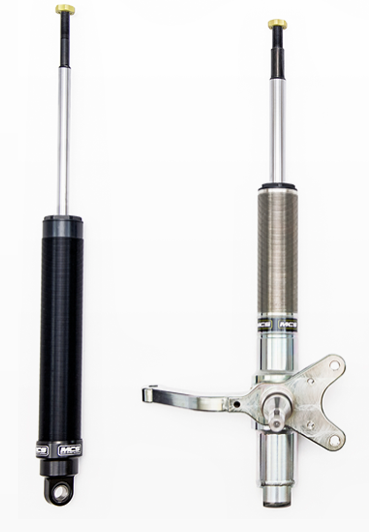

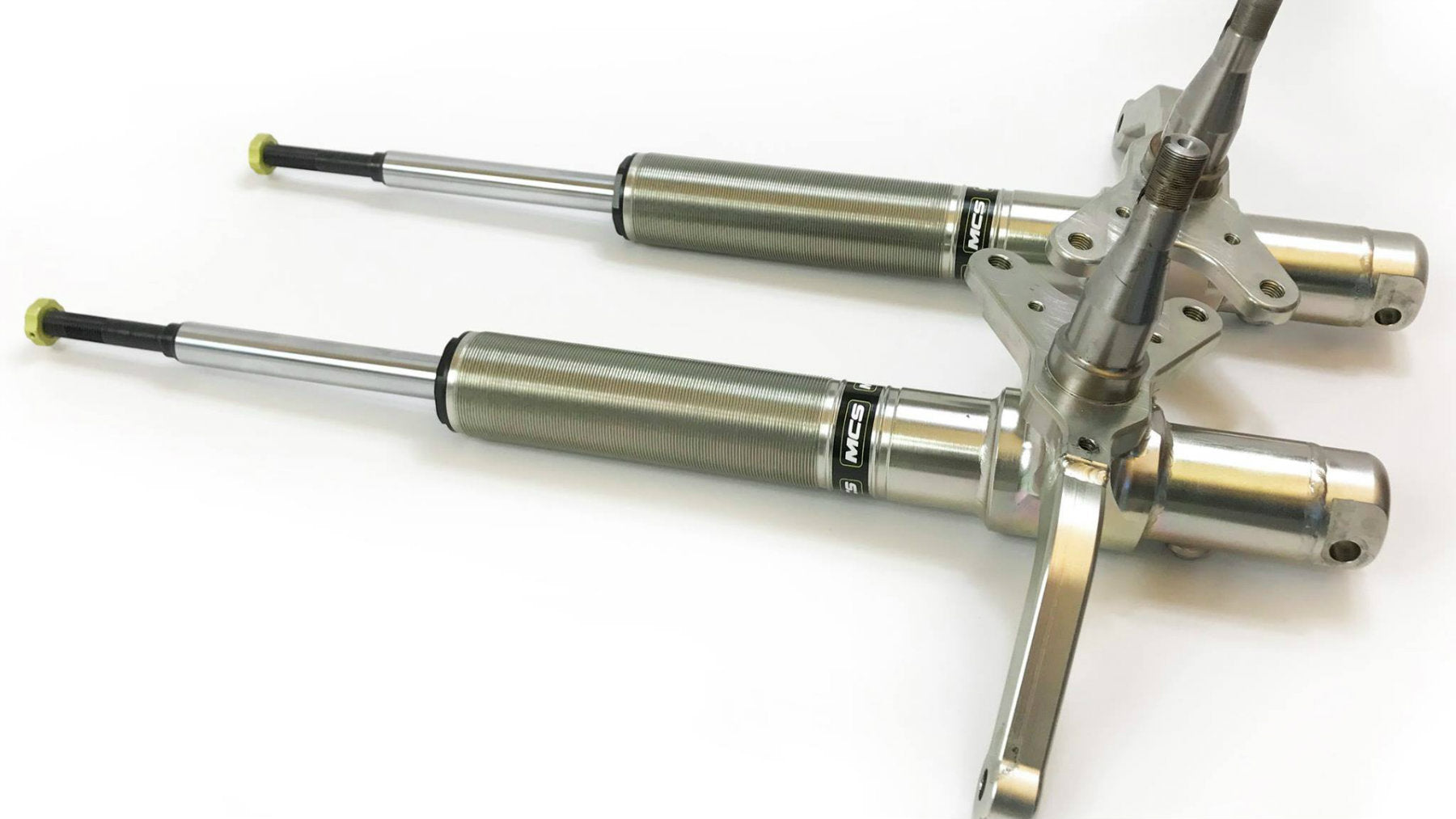

• Lightweight high grade steel strut bodies with brand new one piece - CNC machined spindle & body
• Spindle height can be set at a specified height - Standard, raised +19mm from OEM for low profile tyres, lowered for Safari style vehicles or custom height (no additional cost)
• Spindle camber can be specified as standard OEM setting, extra camber or less camber depending on the application (no additional cost)
• Steel strut body increases torsional stiffness from lateral loads at a higher level exceeding inverted cartridge two piece designs while maintaining sufficient travel, more tyre to spring clearance & a wide range of ride height adjustability
• Brake caliper bolt mounting centres of 3.0 or 3.5 inches
• Light weight aircraft grade hard anodized black aluminum body for rear coil over
• Shaft diameters of 16mm (shocks) or 22mm (shocks & struts) that increases low speed sensitivity & control
• Ride height adjustable
• Coil over or non-coil/torsion bar setup
• High load, low wearing German mono-ball mounts (application dependent)

• Suspension/body attachments as pin to eye, eye to eye, pin to clevis or eye to clevis
• Modular design, can be repaired and serviced locally by us
• Eliminates harshness of road surface due to high internal efficiency of the oil flow within the shock without sacrificing performance handling

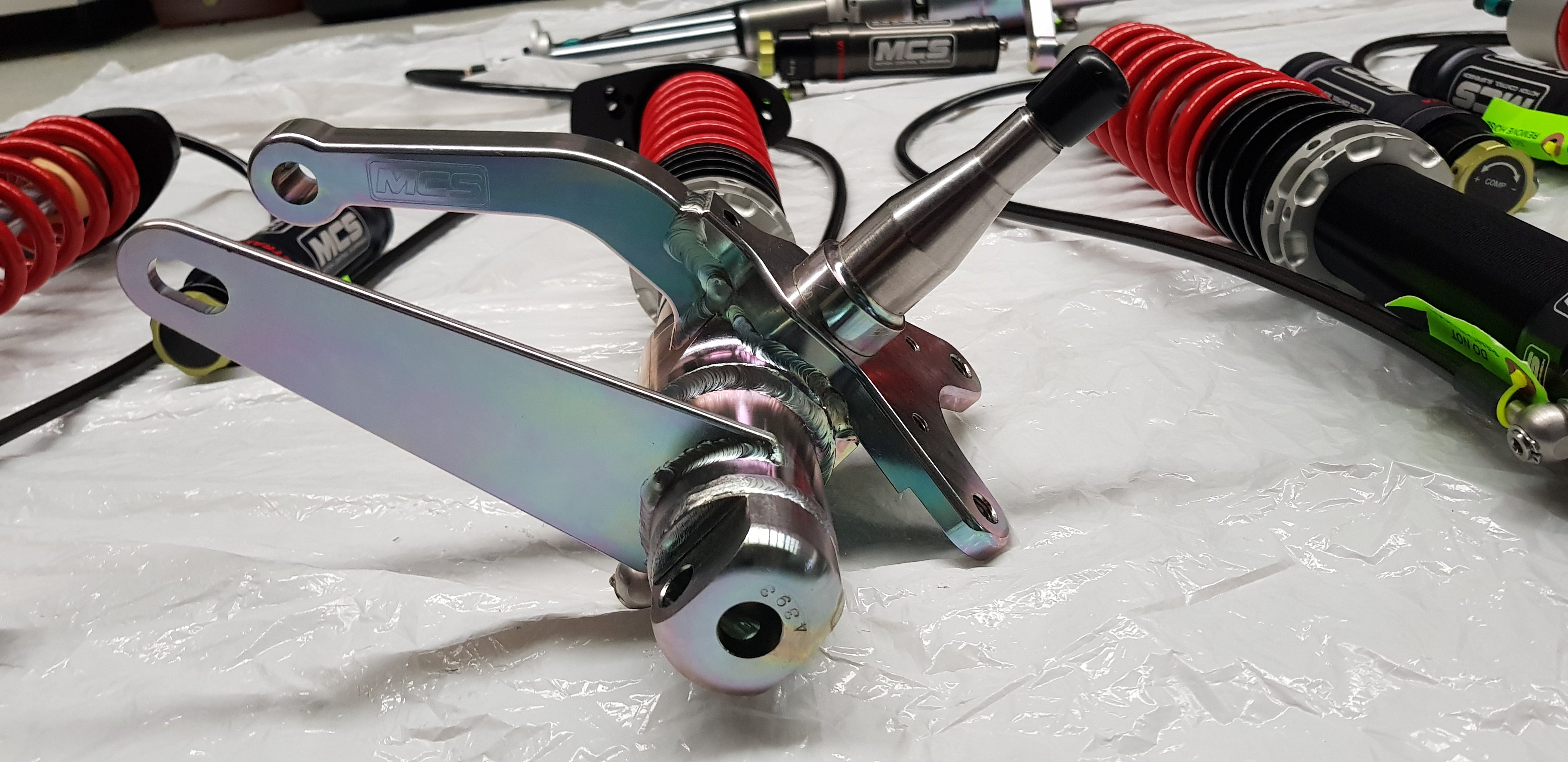

• Bump steer brackets are an optional extra cost - Struts can come with no bracket, bolt on, or welded on depending on spindle height configuration & vehicle use
• Outstanding repeatability and performance
• Supplied with ride height adjustment tools
• Spring collars/locator hardware included
• 2-year warranty when purchased through Racing Shocks Australia
• After sales phone support

• 1 way non remote (1WNR) wide range of adjustment on rebound
• 2 way non remote (2WNR) wide range of adjustment on compression & rebound (separate adjusters)

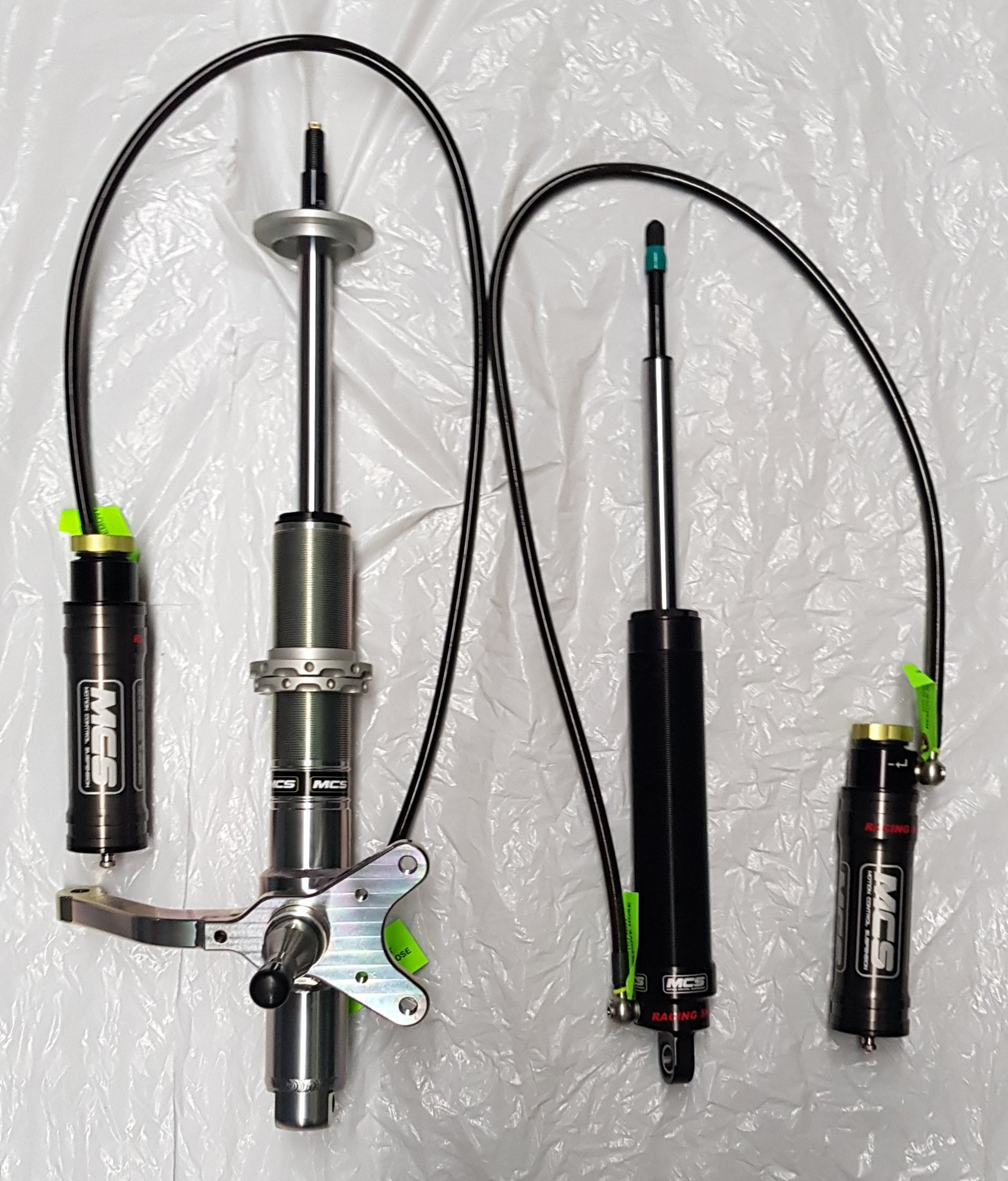

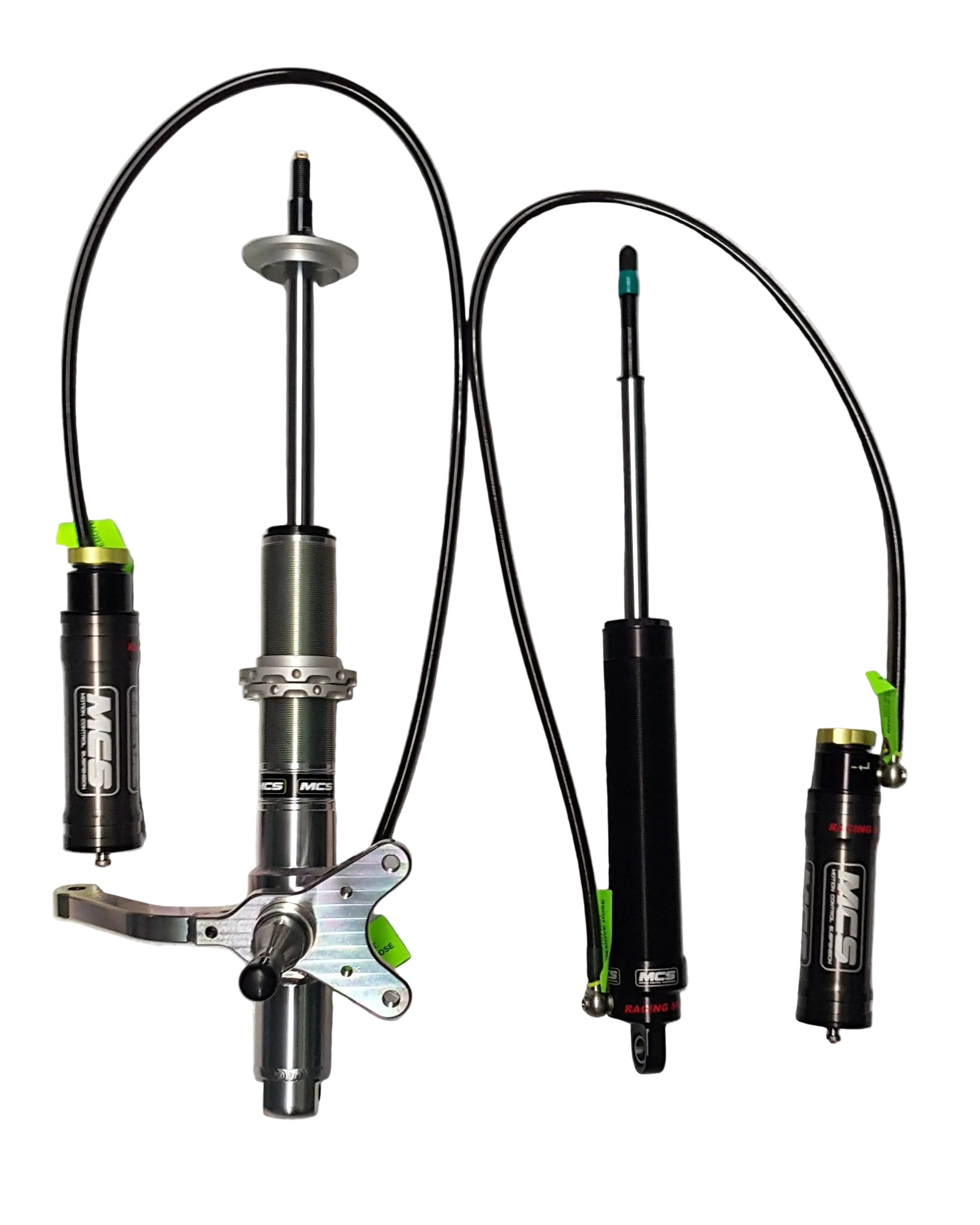

• 2 way remote canister system (2WRC) wide range of adjustment on compression & rebound (separate adjusters)
• 3 way remote canister system (3WRC) low speed & high speed compression adjustment on canister, rebound adjustment on shaft
• 4 way remote canister system (4WRC) low & high speed compression adjustment on canister, low & high speed rebound adjustment on shaft
• All adjustment series can be upgraded for more adjustment from 1WRC to 4WRC in the future

Quick release dry break connectors & bump steer brackets are an additional cost for remote canister setups.

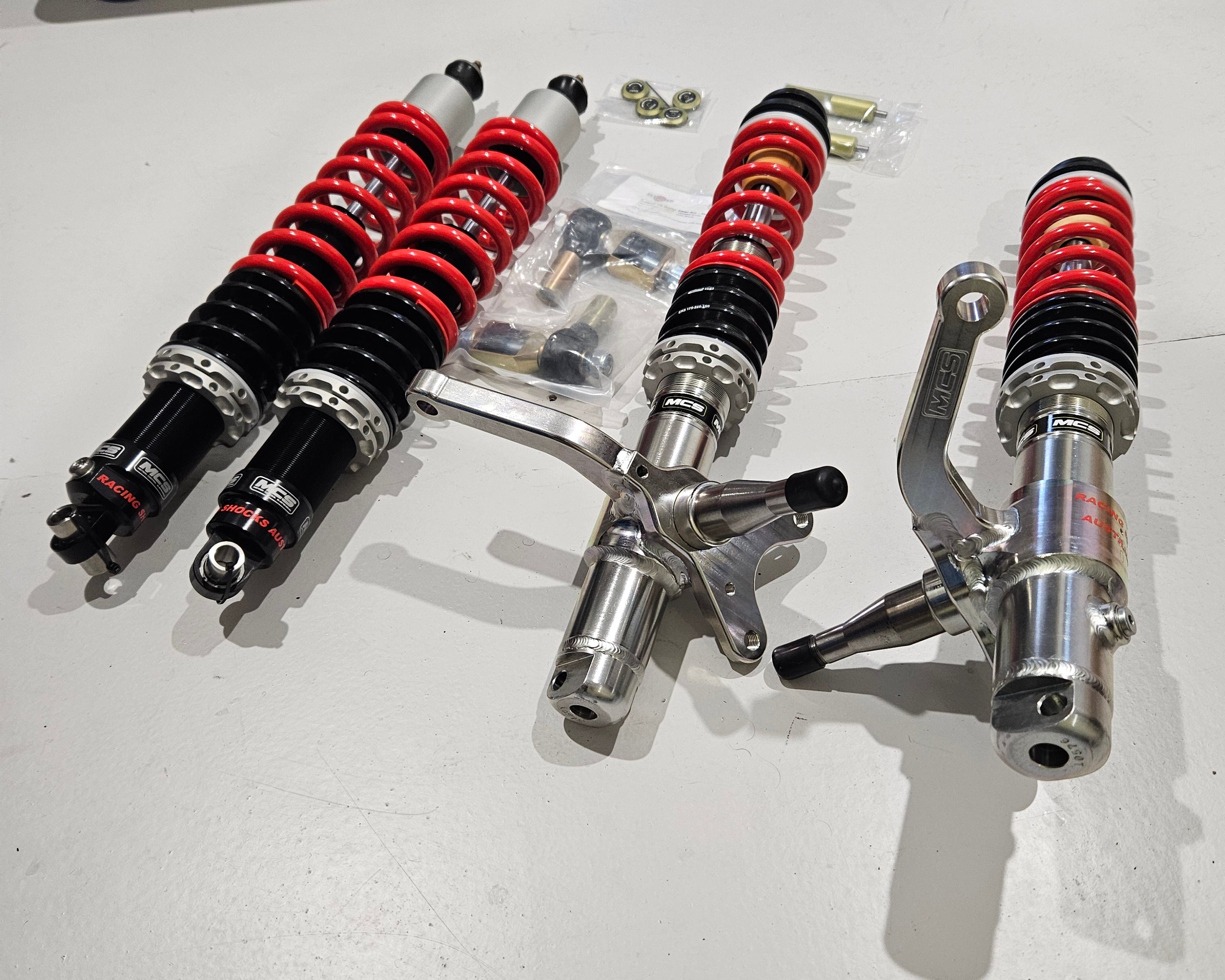

Single spring setups use one spring per wheel. Twin spring setups use two springs per wheel, the smaller being a tender spring which is normally completely compressed at ride height. The rate of this spring helps to keep weight on the inside wheel in cornering while giving additional roll support. Spring rates will be specified dependent if the car is only driven on the street, street & track or race only.

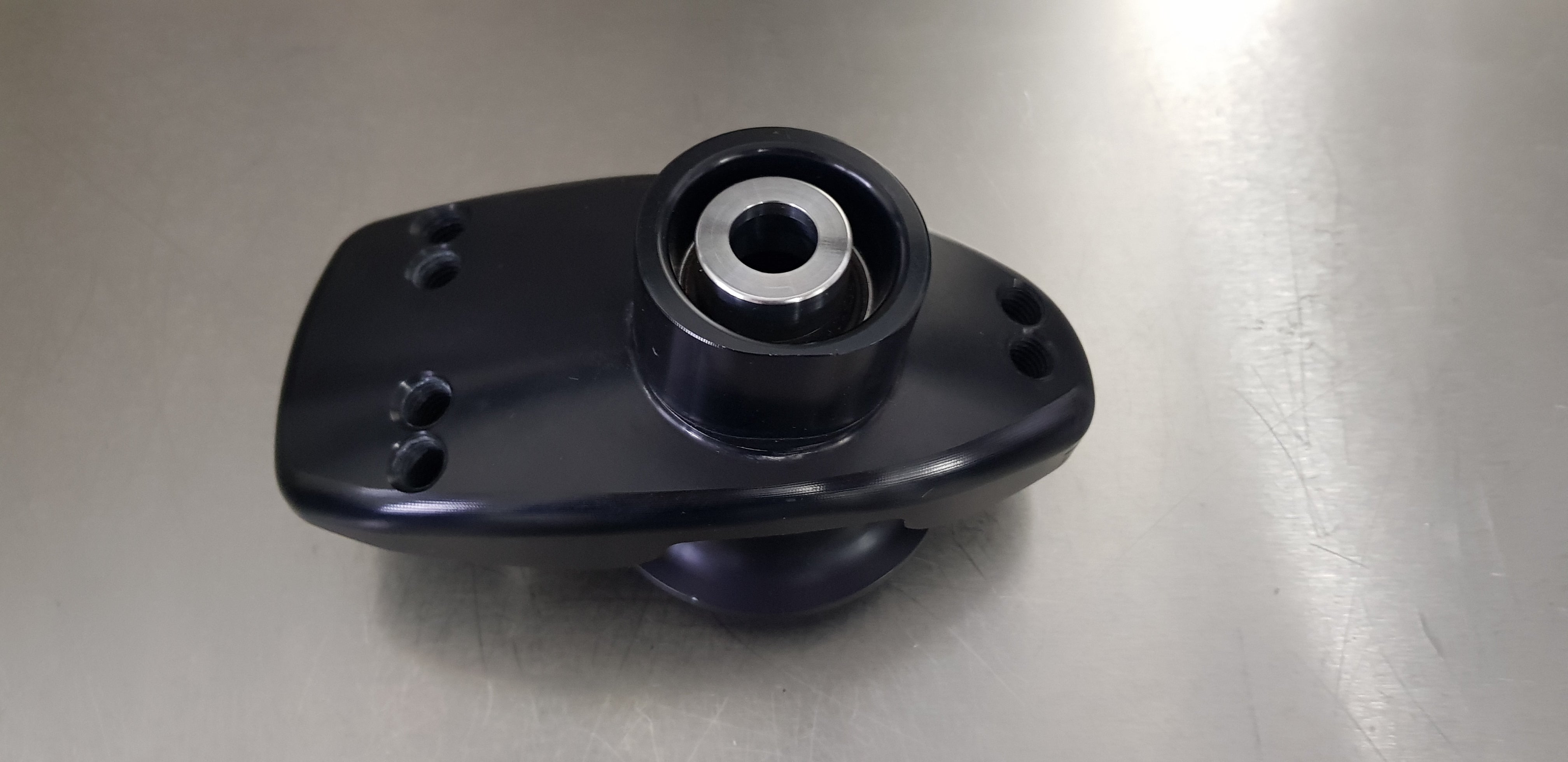

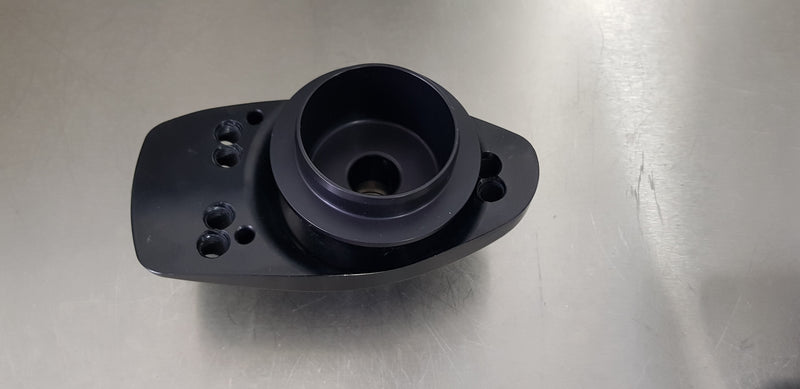

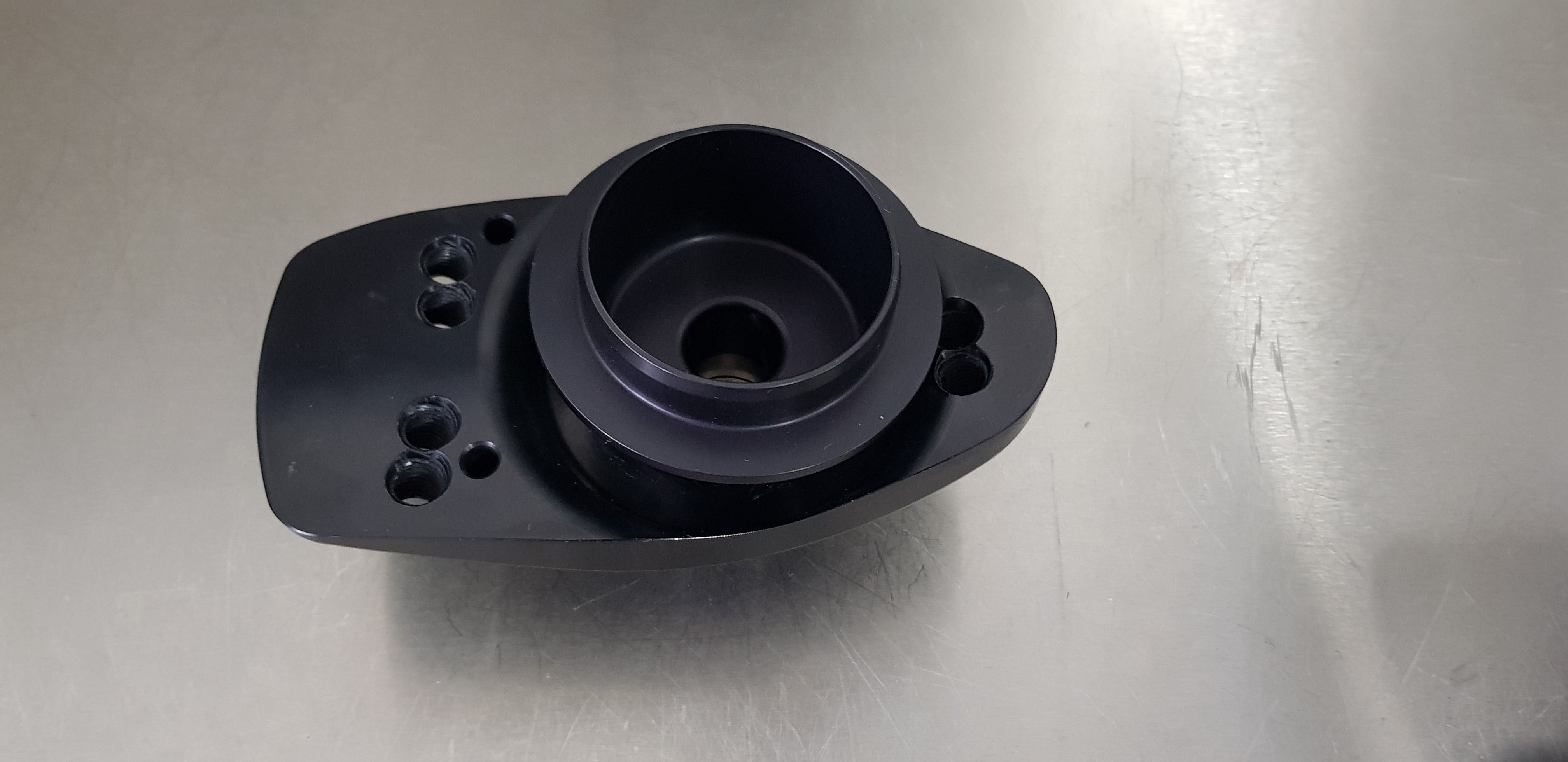

The price indicated is an indicative base price for a car set. If single or twin springs is selected, the price includes MCS front strut mounts & the cost of the springs. The final price may differ slightly which we will confirm at the time of order or enquiry due to currency exchange rate fluctuations.

The price includes international air freight & customs clearance. It does not include domestic freight from our Melbourne warehouse to another location in Australia.

Racing Shocks Australia can also supply strut mounts & other bolt on items from Porsche specialists Elephant Racing or Tarett Engineering. Pricing TBC.

You may contact us to confirm pricing, design & availability.

Track day assistance is also available to help dial in your setup (additional costs apply).
