Motion Control Suspension is a boutique manufacturer of vehicle damper systems.

They are used by owners of prestige performance vehicles, track/club day specialist & professional race teams who appreciate superior handling & exceptional ride control that other cheaper brands can't provide.

These struts/shocks are used regularly in Australia on Street/track day cars, Improved Production, Production car racing & Targa Rally vehicles covering a wide range of vehicle brands.

The majority of stock comes direct from the USA with a build/delivery time of 2 to 3 weeks for off the shelf production lengths & up to 8 weeks for custom/one off strut leg setups. We stock service parts & some vehicle specific stock that are best sellers.

Please check our vehicle brand listing for specific models if you are seeking a complete bolt in system.

Motion Control Suspension features -

• Made in the USA
• Non remote or remote canister system
• Gas pressurized 100 to 280psi (system/valving dependent)
• Maintenance free nitrogen gas chamber on non remote systems
• Gas pressure adjustable on remote canister systems to assist as a tuning tool
• Light weight aircraft grade hard anodized black aluminum body for shock arrangements front & rear
• Lightweight high grade steel strut bodies for McPherson strut setups front & rear
• Steel strut body increases torsional stiffness from lateral loads at a higher level exceeding inverted cartridge two piece designs while maintaining sufficient travel, more tyre to spring clearance & a wide range of ride height adjustability
• Shaft diameters of 16mm (shocks) or 22mm (shocks & struts) increase low speed sensitivity control
• Ride height adjustable
• Coil over or non-coil over available
• High load, low wearing German mono-ball mounts (application dependent)

• Suspension/body attachments as pin to eye, eye to eye, pin to clevis or eye to clevis
• Fixed open lengths but custom design length available at no additional cost (TC apply)
• Modular design, can be repaired and serviced locally by us
• Eliminates harshness of road surface due to high internal efficiency of the oil flow within the shock without sacrificing performance handling
• Outstanding repeatability and performance
• Supplied with ride height adjustment tools
• Spring collars/locator hardware included
• 2-year warranty when purchased through Racing Shocks Australia
• After sales phone support

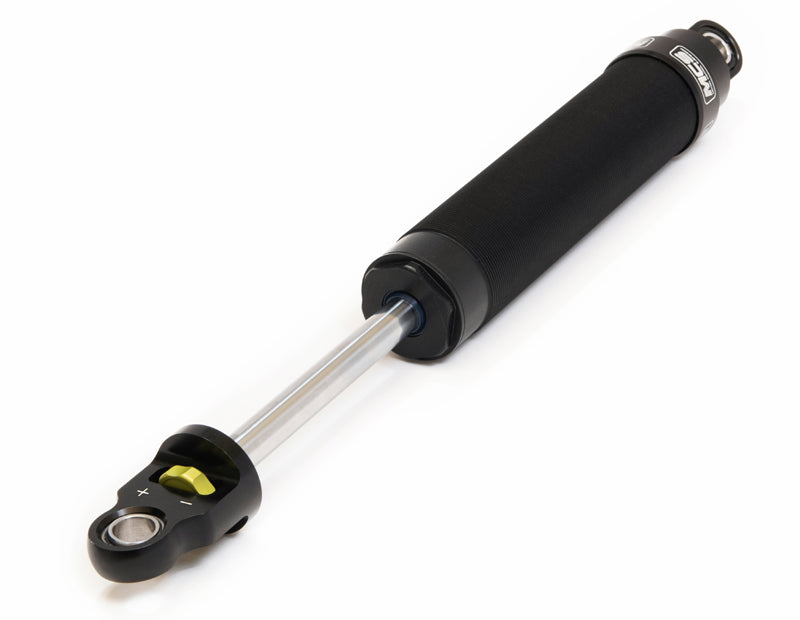

• 1 way non remote (1WNR) wide range of adjustment on rebound

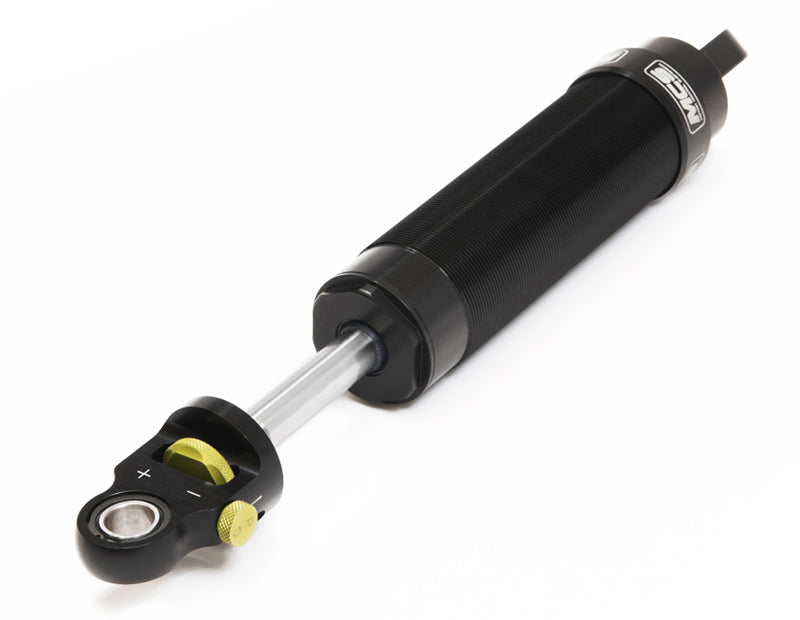

• 2 way non remote (2WNR) wide range of adjustment on compression & rebound (separate adjusters)

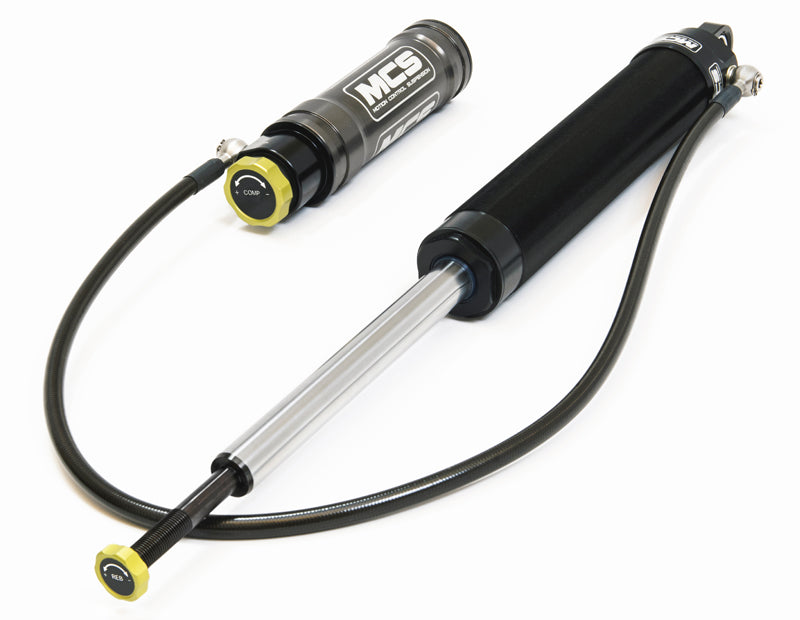

• 2 way remote canister system (2WRC) wide range of adjustment on compression & rebound (separate adjusters)

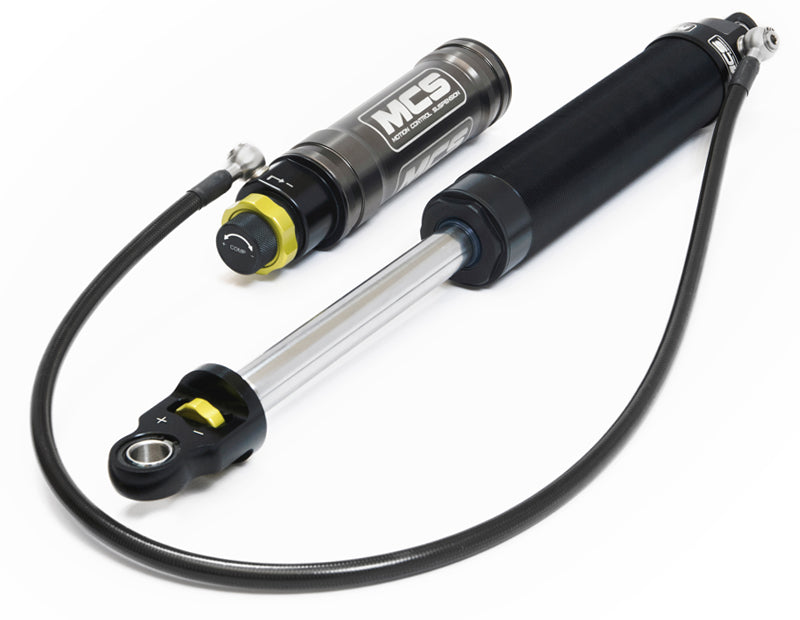

• 3 way remote canister system (3WRC) low speed & high speed compression adjustment on canister, rebound adjustment on shaft

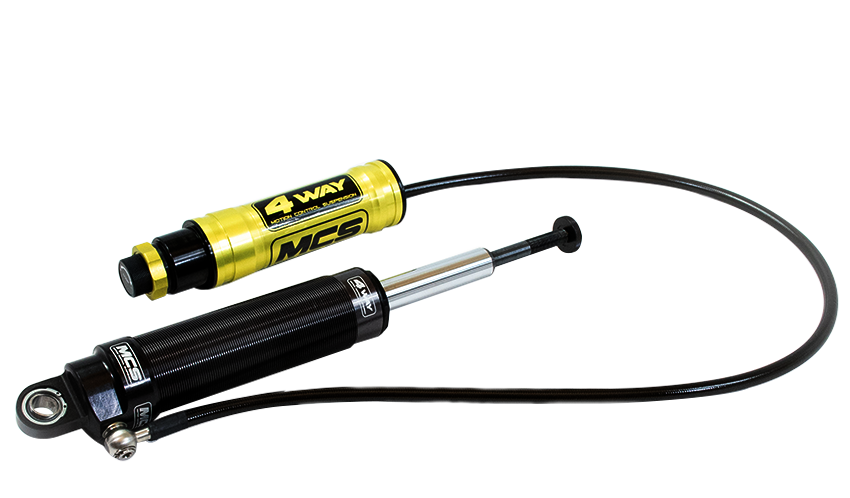

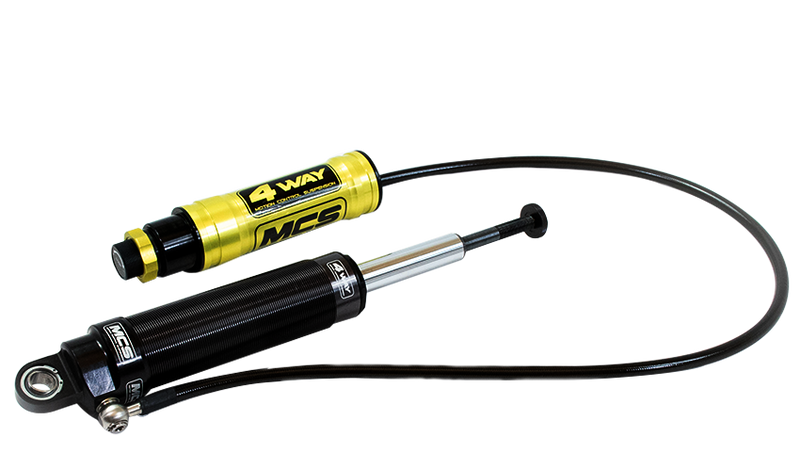

• 4 way remote canister system (4WRC) low & high speed compression adjustment on canister, low & high speed rebound adjustment on shaft
• All adjustment series can be upgraded for more adjustment from 1WRC to 4WRC in the future

The price excludes the cost of springs, strut mounts/brackets & bump rubbers/stops. However we can configure a complete system to suit your vehicle/application. We also offer the ability to order other parts from the USA to bundle the freight to save on costs.

The price indicated is a common base price for a single (x1) damper for a wide range of lengths. The final individual price may differ slightly which we will confirm at the time of order or enquiry.

To confirm we supply you the correct unit, we will also require the following items -

• Application/category
• Coil over or non coil over
• Mountings - pin to eye, eye to eye, pin to T-bar, T-bar to eye
• Spring rate in use
• Motion Ratio
• Car weight & distribution front/rear weights
• Open length & closed lengths
• Special requirements

Track day assistance is also available to help dial in your setup (additional costs apply).

Image may differ from actual product.
